商品の詳細:
|
| 製品: | 合金鋼板 | 学年: | 5140 / 1.7035 / 40cr |
|---|---|---|---|
| 厚さ範囲: | 3 - 140mm | 幅: | 2200mmまたは要求として |
| 長さ: | リクエストとしてのカスタム長 | サービス: | 切断 |
| 状態: | 在庫あり | 他の等級: | 40cr 42CRMO 45＃Q355 |

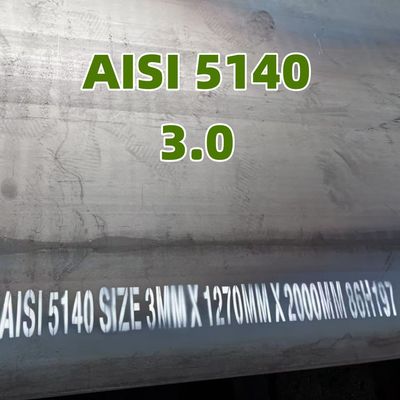

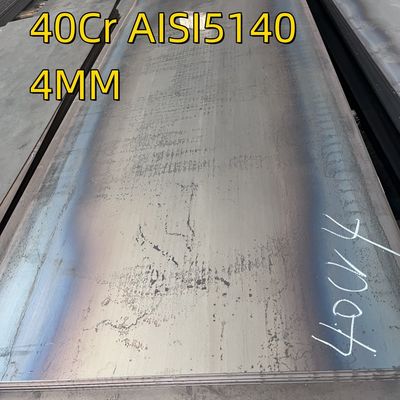

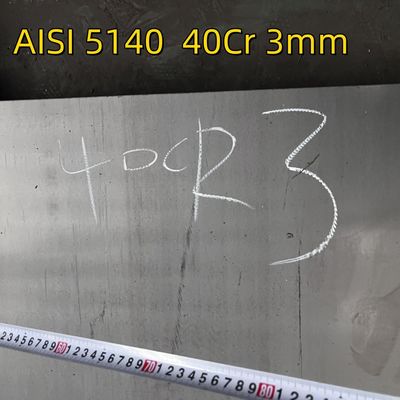

Detail informations of our 5140 Alloy Steel Plate
|
Product Name
|
5140 Alloy Steel Plate |
|
Width
|
2200mm or custom as request
|
|
Length
|
custom as request |
| Thickness | 10 - 140mm |
|
Service
|
Cutting plate into any size as request |
|
Other Grade
|
1035 1040 1055 1060 1065 1070 1016 1037 1039 1046 1053 1566 1572 Grade 50 Grade 55 Grade 60 Grade 65 Grade 80 S35C S40C S50C S55C S58C SWRH67B SWRH72A SWRH77A 40 1040 65 1065 SWRCH22K C22E S550QL 1.8925 1.0114 1.0425 40Cr 5140
|
|
Application
|
Widely used in construction machinery, mining machinery, coal mining machinery, environmental protection machinery, metallurgical
machinery and other parts.Excavator, loader, bulldozer bucket plate, blade plate, side blade plate, blade.Crusher liner, blade |
|
MOQ
|
500 kgs |
|
Shipment time
|
5 - 7 days for mateials in stock |
5140 steel has good comprehensive mechanical properties and is one of the most widely used steel types, used for manufacturing parts of medium speed and medium load, such as machine tool gear, shaft, worm, spline shaft and so on. The tensile strength, yield strength and hardenability of 5140 alloy steel are higher than 1045 steel, with higher fatigue strength and good toughness, normalizing or tempering machinability are very good, annealing machinability is also good, generally used after tempering treatment.
5140 steel products we can supply:
AISI 5140 steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. DIN W N-R 1.7035 steel Round bar can be sawn to your required lengths as one offs or multiple cut pieces. 1.7035 alloy steel Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
| C(％) | 0.38～0.43 | Si(％) | 0.15～0.35 | Mn(％) | 0.70～0.90 | P(％) | ≤0.025 | |
| S(％) | ≤0.040 | Cr(％) | 0.70～0.90 | Mo(％) | 0.06Max | Ni(％) | 0.25Max |
| USA | Germany | China | Japan | France | England | Italy | Poland | ISO | Austria | Sweden | Spain |
| ASTM/AISI/UNS/SAE | DIN,WNr | GB | JIS | AFNOR | BS | UNI | PN | ISO | ONORM | SS | UNE |
| 5140 / G51400 | 41Cr4 / 1.7035 | 40Cr | SCr440 | 42C4 | 530A40 / 530M40 | 41Cr4 | 2245 |
Gear, shafts, Alloyed case hardening steel for parts with a required core tensile strength of 1000 – 1300 N/mm² and good wearing resistance as boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.Especially in wheels and stopcock.
Applications included worm, spline shaft, main shaft, oil pump rotor, sliding block, lantern ring, etc.
Q1: What's your terms of payment?
A: 30%T/T as the upfront deposit, 70% before delivery, We will show you the photos and package before you pay the balance.
Q2: What's the terms of delivery?
A: EXW, FOB, CFR, CIF
Q3: What's the terms of packing?
A: Generally,we pack our goods in bundles or coils with rods or belts, we could also pack the goods as the customers' requirement.
Q4: What's your delivery time?
A: For stocks, we could transport the goods to loading port within 7 work days after we received the deposit.For productionperiod, it usually takes about 15 days to 30 days after we received the deposit.
Q5: Could you produce according to the samples?
A: Yes, we can customer-made by your samples or technique drawings, we can build the mold and fixtures.
Q6: Could youprovide the compliment samples?
A: Yes, we could provide the free samples on condition that it is available in stocks, however,the transportation fee is borne by buyer.
Q7: How could you guarantee your products quality?
A: Each piece of products is manufactured by certified workshops, inspected by us piece by piece according to national QA/QC standard. We also could issue the warranty to customer to guarantee the quality.
Q8:What are the advantages of your company?
A:(1): Prime quality and reasonable price.
(2): Wide excellent experiences with after-sale service.
(3): Every process will be checked by responsible QC which insures every product's quality.
(4): Professional packing teams which keep every packing safely.
(5): Trial order can be done in one week.
(6): Samples can be provided as your requirements
