商品の詳細:
|
| od: | 6-300mm | 長さ: | 1-12m |
|---|---|---|---|
| 表面: | 黒くおよび明るいです | タイプ: | ホットロール |
| 状態: | 熱処理 | サイズ: | 20mm-110mm |
| 配信条件: | アニール | 融点: | 1300-1390°C |
| 外径: | 406～762mm、406～1625.6mm | 合金: | カスタムメイド |
| 終わり: | 斜め/平野 | 特別な使用: | 金型鋼 |
| アウト直径: | 20 - 750 mm | 密度: | 8.83 g/cm3 |
| 物理的特性: | 比重7.85 | 処理サービス: | 粉砕 \ 剥き去り \ 磨き去り \ 土 |
| カスタムサイクル: | 7〜15日 | 商標: | シェンゲ |
| 表面仕上げ: | 磨きました | ||
| ハイライト: | Hot Rolled Steel Round Bar 20mm,High Strength Alloy Steel 22NiCr14,Heat Treated Structural Steel Round Bar |
||
The material 20Cr2Ni4A is a kind of structural alloy steel. 20 cr2ni4a is high quality alloy steel and it has high strength,toughness and hardenability.For 20Cr2Ni4A steel, there is no direct quenching after carburizing in order to reduce surface residual austenite. 20Ci2Ni4A’s cutting and cold deformation plasticity is general and it has poor weldability.
20 Cr2Ni4A is widely used for large cross-section carburized parts, such as large gear, shaft, and conditioning components requiring high strength, and good toughness.
20Cr2Ni4A chemical composition %:
| Grade | Chemical composition %: | ||||||
| C | Si | Mn | P | S | Cr | Ni | |
| 20Cr2Ni4A | 0.17-0.23 | 0.17-0.37 | 0.30-0.60 | ≤0.03 | ≤0.03 | 1.25-1.65 | 3.25-3.65 |
20Cr2Ni4A mechanical properties:
| Grade | Mechanical properties: | |||||
| Tensile strengthσb (Mpa) |
Yield strengthσ0.2 (Mpa) |
Elongationσ5 (%) |
reduction of area ψ (%) |
Hardness | Notched bar impact strength αkv (J/cm2) |
|
| min | min | min | min | max | min | |
| 20Cr2Ni4A | 1483 | 1292 | 13 | 57 | 434HB | 75 |
20Cr2Ni4A condition of delivery: heat treatment(Normalizing, Annealing, or high temperature tempering) or do not heat treatment state.
If you have need for 20Cr2Ni4A forged round bar, 20Cr2Ni4A forged square bar, 20Cr2Ni4A forged square bar, 20Cr2Ni4A forged shafts and 20Cr2Ni4A forged blocks. Please contact with us freely. Bebon will offer you more than your expect.
General Applications
Widely used for stransmission system,motor of tractor and middle-small auto. Alternative 12CrNi3 to make higher class carburization and cyanide carburizing parts such as oil drilling,claws and cone for mining.
It is commonly used for carburized gears, pinions, shafts, bearings, piston rings, ring gears, crankshafts, etc.

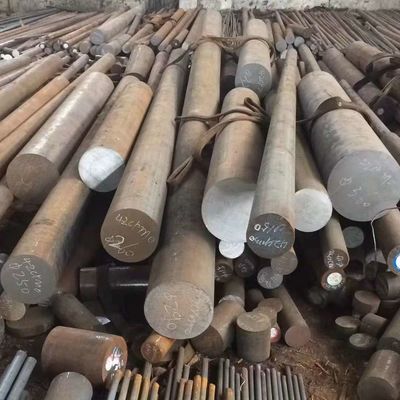

Stock Size
| round bar | Diameter | 12-380mm |
Our steel materials are in different sizes and conditions specially catered to our customers' needs. They come in round bars, flat bars, plates and blocks.
The conditions of the materials vary from pre-hardened, hot rolled,annealed, quenched and tempered to surface conditions such as black, pre-machined,griding and polish.
Why choose us?
Quality Assurance from government owned steel mills
we meticulously source materials only from steel manufacturers to ensure consistency in providing the finest quality steel products for our customers.
Being in the competitive market today, we clearly understand that customers are looking for products that are not only best in class but also affordably priced. We are confident that we are able to ful fil these two equally vital aspects -our customers' continuous support over the past two decades is the most heartfelt recognition to us.
Speedy and Timely Delivery
Knowing that delivering goods to customers' hands on time is as important as providing quality goods, we treat every business transaction as a priority. Be it a raw material or a finished material with machining or heat treatment, every effort will be made to get your purchase order to you in the shortest lead time.
Quality Commitment
In order to realise competitive products to fulfil our customers' demands and quality considerations, our integrated quality and work management system is continuously being improved and developed further. We document this for our customers by having our quality management system certified in accordance with ISO 9001. This measure is accompanied by audits and recertification's on a regularly prescribed basis.
Our service
We provide quality special steel for all industries.
Orders of any size, any length, ship fast
We carry a unique inventory of specialty special steel
Provide related value-adding services :
metal cutting, sizing, machining (blanking, milling, grinding), and heat treatment.
Sawing for small or large quantities, sawing-to-size.
Excellent customer service
