商品の詳細:
|
| 製品: | ASTM A564 SUS 631 17-7pH 機械用ステンレス鋼丸棒 | 形: | ラウンド |
|---|---|---|---|
| 表面: | 明るい,剥がれ,漬け,黒い,髪線,ブラシ,砂の爆発,など | MTC: | 利用可能 |
| 技術: | 造られる/つや出し/冷たい-引かれる | 証明: | ISO, SGS, BV, AISI, ASTM, EN, DIN, JIS |
| 主な市場: | 中東/南アジア/ヨーロッパ/南米 | 直径: | 8~400mm |
| Element | C | Si | Mn | P | S | Cr | Ni | Al |
| Content | ≤0.09 | ≤1.0 | ≤1.0 | ≤0.04 | ≤0.03 | 16–18 | 6.5–7.75 | 0.75–1.5 |
| Condition | Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | Hardness (HRC) |
| 565°C Aging | ≥1,140 | ≥960 | ≥5 | ≥36 |
| 510°C Aging | ≥1,230 | ≥1,030 | ≥4 | ≥38 |
1. Performance Characteristics
High Strength and Toughness: Through precipitation hardening (e.g., aging at 565°C or 510°C), tensile strength can reach 1140-1230 MPa and hardness exceeding HRC 45, while maintaining excellent toughness.
Corrosion Resistance: Containing 17% chromium and 7% nickel, it offers superior corrosion resistance to ordinary martensitic stainless steel and is suitable for environments containing chloride, but may rust with long-term exposure to marine atmospheres.
Heat Treatment Characteristics: Solution treatment (rapid cooling at 1040-1100°C) allows for easy machining, while aging significantly increases strength with minimal deformation, making it suitable for precision parts manufacturing.
Temperature Adaptability: Stable performance within the temperature range of -60°C to 350°C, but can become brittle at low temperatures (below -100°C).
2. Chemical Composition and Standards
Main Components: Chromium (17%), Nickel (7%), Aluminum (0.75%-1.5%), supplemented by carbon, manganese, silicon, and other elements.
Grade and Standard: US UNS S17700, Domestic Grade OCr17Ni7A. Production complies with ASTM A313 and other specifications.
3. Main Applications
Aerospace: Aircraft landing gear components, fasteners, and hydraulic system components subject to high stress and corrosive environments.
Chemical Equipment: Pipeline and vessel linings operating below 350°C, resistant to acid and alkaline corrosion.
Medical Devices: Surgical instruments and implant stents, requiring both biocompatibility and easy sterilization.
Elastic Components: High-precision springs and washers for automotive transmission systems and electronic equipment.
Military Equipment: Lightweight armor and missile casings requiring high strength and weather resistance.

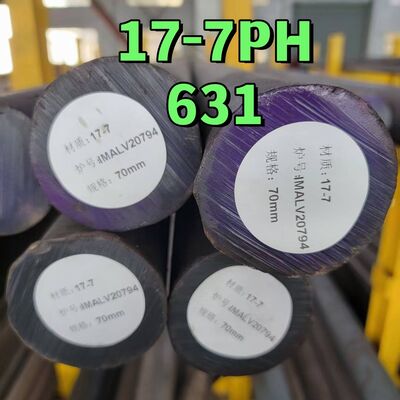

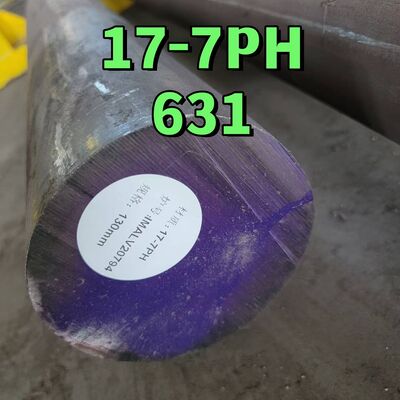

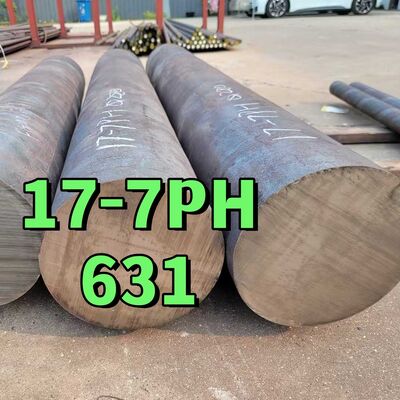

| 1. Product: | ASTM A564 SUS 631 17-7pH Stainless Steel Round Bar for Machines |
| 2. Steel type: | * American name: AISI 631, also known as 17-7PH |
| * Chinese name: 00Cr17Ni4Cu4Nb | |
| 3. Standard: | ASTM A564 |
| 4. Diameter: | From Ø1/4'' to Ø16'' ( Diameter: 6mm~400mm ) |
| Such as Ø1'', Ø2'', Ø2.5'', Ø3'', Ø3.5'', Ø4'', Ø4.5'', Ø4.5'', Ø5'',Ø6'', Ø7'', Ø8'' | |
| 5. Length: | 1~ 8meters |
| 6. Surface: | Bright |
| 7. Diameter tolerance: | H9, H11, H13, K9, K11, K13 etc…as per clients' request etc |
| 8. Length tolerance: | 0/+50mm |
| 9. Finishing: | Solution treated + age hardening heat treated ( H900, H1100, H1150 etc ) |
| 10. Feature of 631: | High Tensile strength, high hardness after heat treated. |
| 11. Mechanical property: | T.S. (Rm): 1015Mpa, Y.S. (Rp0.2): 906Mpa, EL (A5):17.1%, Z:60.3%, Hardness(HRC): 34.5 |
| 12. Application: | * Shipbuilding industry, marine shaft, propeller shaft, rudder shaft, boat shaft, vessel shaft, |
| * pump shaft, machine-made industry, valve parts, paper mill equipment. | |
| 13. Delivery time | Generally within 25 days, as per the q'ty. |
| 14. Certificate: | ISO, BV, TUV, SGS, mill test certificate |
| 15. Package: | Good quality & fumigated wooden box, can better protect the bars. ( See pictures below ) |
We also supply :
# stainless steel sheet /plate
# Stainless steel coil
# Stainless steel pipe/tube
# Stainless steel bar/rod
# Stainless steel square/angle bar
# Galvanized steel sheet/plate
# Galvanized steel coil
# Galvanized steel pipe/tube
Material/Grade : 304 321 316 316L 310S 309S 202 201 430 409L 444 410s 904L 2205 2507 Incoloy 800 800H 800HT 825 Inconel 600 625 718 Monel 400 Hastelloy C-276.etc
