AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part
AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

大画像 :  AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

商品の詳細:
起源の場所: 中国
ブランド名: BAO STEEL
証明: SGS
モデル番号: 15-5PH
お支払配送条件:
最小注文数量: 1トン
価格: 2350-4580 USD/Ton
パッケージの詳細: 輸出梱包
受渡し時間: 7日間
供給の能力: 500 トン

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

説明
外径: 8-200mm 長さ: 1000-8000mm
表面: ブラックアンドブライト 耐食性: 高い
製品名: ステンレス丸棒 パッキング: 輸出のためのパッキング
形: ラウンド 熱処理: 焼きなまし、焼き入れ
直径範囲: 3mmから200mm OEMサービス: 受け入れる
表面仕上げ: ポリッシュ、ミル仕上げ、ブラッシュ仕上げ 表面仕上げ: 2B、ポリッシュ
ロードポート: 寧波港,天津港 ニッケル: 8%
色: ナチュラルカラー、ホワイトブライト 長さ範囲: 1m〜6m
被削性: 良い 材料: ステンレス鋼
ハイライト:

AMS 5659 stainless steel round bar

,

15-5PH stainless steel valve part

,

S15500 martensitic steel oil part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part


15-5PH / EN 1.4545 (X5CrNiCu15-5, UNS S15500, XM-12) Precipitation Hardening Stainless Steel
15-5PH is a premium martensitic precipitation hardening stainless steel, improved version of 17-4PH, specified by German EN standard 1.4545 and American ASTM A182, A240, AMS 5659.
With balanced 15% chromium, 5% nickel, copper and niobium alloying elements, this grade eliminates almost all delta ferrite via vacuum remelting, delivering outstanding transverse toughness, uniform mechanical properties and much better resistance to stress corrosion cracking compared with 17-4PH.
It can be solution annealed at 1040–1065°C for easy machining, then age-hardened at low temperature with minimal distortion to reach different strength levels: H900 for maximum hardness, H1025 for balanced strength & ductility, H1150 for superior toughness & sour corrosion performance.
15-5PH features good weldability, excellent polishability, cavitation erosion resistance and corrosion performance close to 304 stainless steel.
Widely used in oil & gas valve stems & bodies, aerospace hydraulic components, food & medical machinery, hydro power turbine parts, high-strength fasteners and plastic injection molds.
Available products: round bar, flat bar, plate, seamless pipe, forgings, flanges and wire, supplied with DIN EN 10204 3.1 / 3.2 mill test certificates for European Union market.


Precipitation Hardening Stainless Steel 15-5PH steel bars Similar Grade
W.Nr AISI UNS ASTM
1.4545 15-5PH S15500 S15500



Precipitation Hardening Stainless Steel 15-5PH steel bars Chemical composition
15-5PH C Si Mn P S
0.07max 1.0max 1.0max 0.030max 0.015max
Cr Cu Cb Ni Mo
14.0-15.5 2.5-4.5 0.45max 3.5-4.5 0.5max



Precipitation Hardening Stainless Steel 15-5PH Information
Alloy 15-5 is a precipitation hardening alloy exhibiting high strength and hardness with moderate corrosion resistance. Alloy 15-5 is a variant of the older 17-4 and 15-5 was designed to have greater toughness than S17400, especially in the through-thickness (short transverse) direction. Alloy 15-5 is used in applications that require high transverse strength and toughness such as engine parts, aircraft components, nuclear reactor components etc.


Precipitation Hardening Stainless Steel 15-5PH Typical Physical Property
Material Condition Ultimate Tensile Strength (ksi) 0.2 % Yield Strength (ksi) Elongation % in 2D % Reduction of Area Rockwell C Hardness
Alloy 15-5 PH Cond A - - - - 363 HB max
Bar AMS 5659
Alloy 15-5 PH H900 190 170 10 35 388-444
Bar AMS 5659
Alloy 15-5 PH H925 170 155 10 38 375-429
Bar AMS 5659
Alloy 15-5 PH H1025 155 145 12 45 331-401
Bar AMS 5659
Alloy 15-5 PH H1075 145 125 13 45 311-375
Bar AMS 5659
Alloy 15-5 PH H1100 140 115 14 45 302-363
Bar AMS 5659
Alloy 15-5 PH H1150 135 105 16 50 277-352
Bar AMS 5659

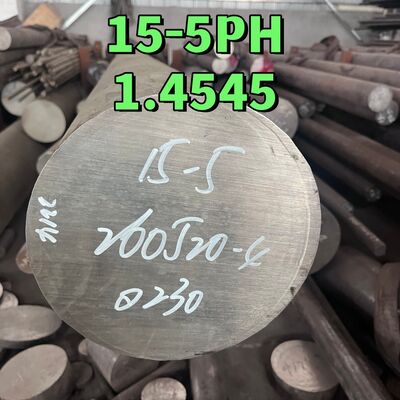

Produce Photo

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

AMS 5659 15-5PH 1.4515 S15500 Martensitic Precipitation Hardening Stainless Steel Round Bar For Oil& Valve Part

After Processing And Before Packing

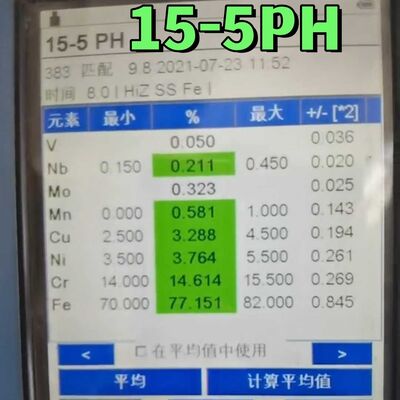

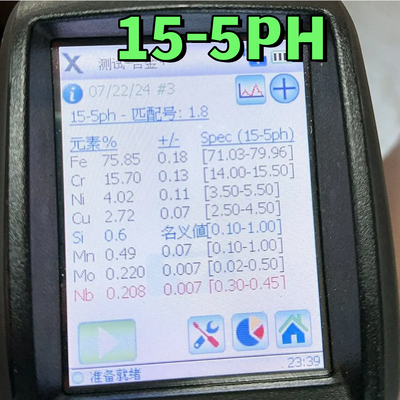

1. Chemical Compositon Inspection

2.Nondestructive Inspection

3.Metallurgical Microscope Inspection.

4.Physical Property Inspection

5.Hardness Inspection

6.Heterogeinity Of Carbides

FAQ
Q1. What are your company's main products ?
A1: Our main products are stainless steel plate/sheet, coil, round/square pipe, bar, channel, etc.

Q2. Where is your factory ?
A2: Our company's processing center is located in Jiangsu, Wuxi, China.
Which is well equipped with kinds of machines, such as laser cutting machine,mirror polishing machine and so on.
We can provide a wide range of personalized services according to the customers' needs.


Q3:How to confirm the Product Quality before placing orders?
A3:You can get free samples for some products,you only need to pay the shipping cost or arrange a courier to us and take the samples. The third-party will be accepted.


Q4. What are the advantages of your company ?
A4: We have many professionals, technical personnel, more competitive prices and best after-dales service than other stainless steel companies.

Q5. How many coutries you already exported ?
A5: Exported to more than 50 countries mainly from America, Russia, UK, Kuwait, Egypt,Turkey, Jordan, India, etc.

Q6:What is your delivery time?

A6: For stocks, we could transport the goods to loading port within 7 days after we received your deposit

For production period, it usually takes about 15 days-30 days after receiving the deposit.


Q7. Can you provide sample ?
A7: Small samples in store and can provide the samples for free.
Customized samples will take about 5-7days.
